Happymodel Mobula6 Freestyle HD
Description

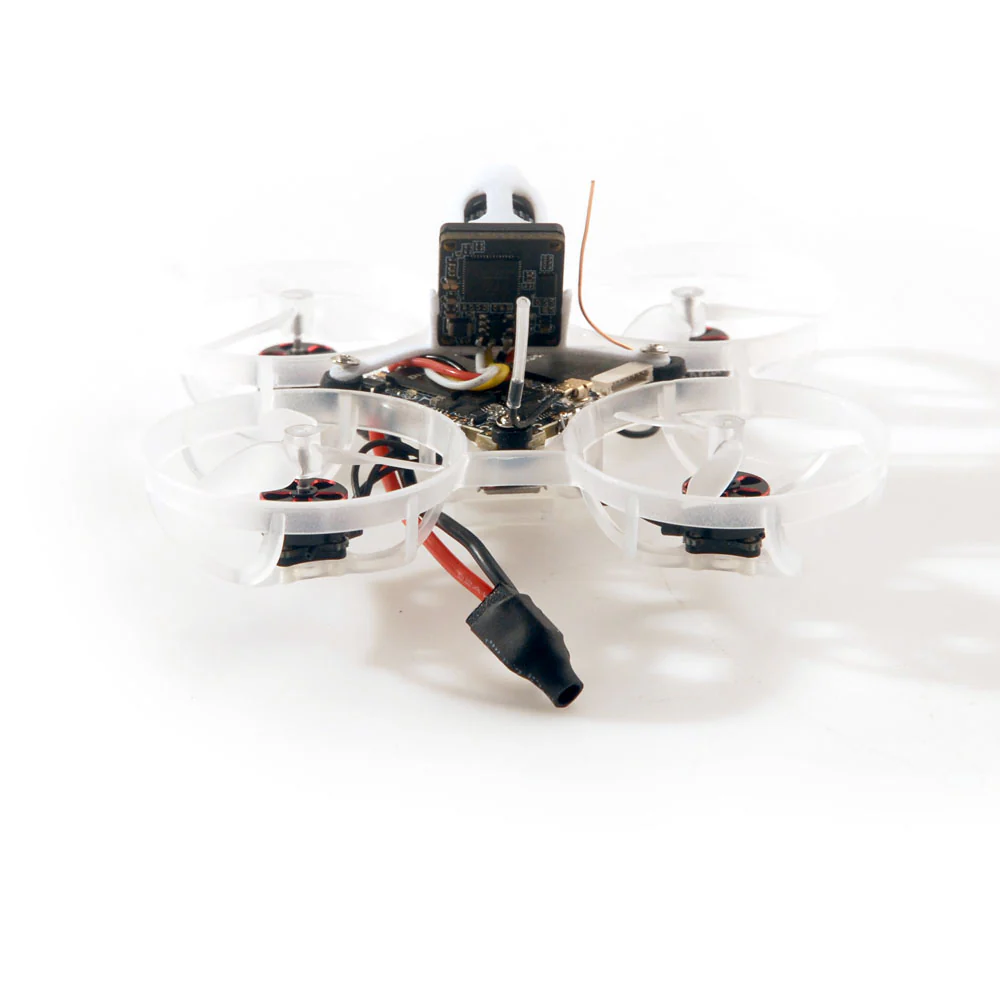

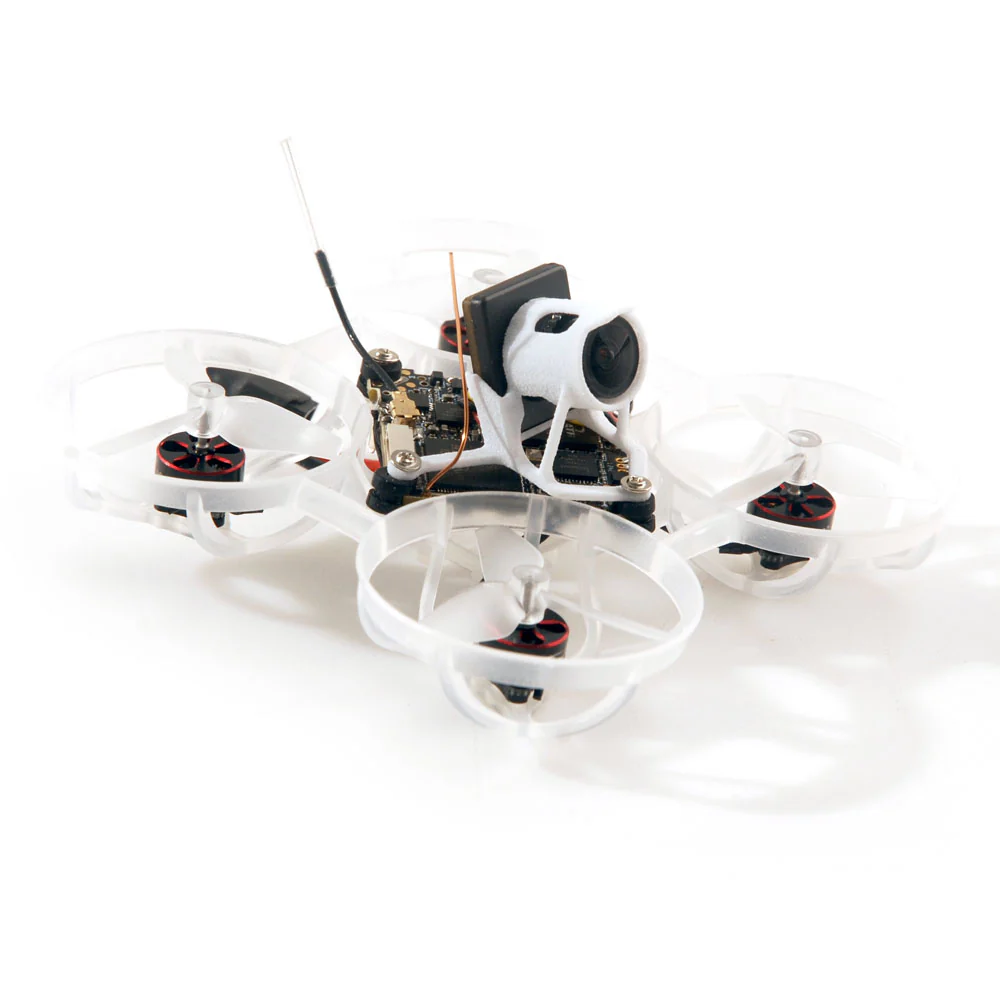

The Happymodel Mobula6 Freestyle HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.6g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the worldās first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity ā get ready for a new era of no-compromise tiny whooping in clear digital video!Ā
Focusing on freestyle flying, this whoop includes the Runcam HDZero Lux camera and a vibration-free fixed angle 25deg camera mount. The camera features a Ā½ inch CMOS sensor that delivers sharp image quality and excellent low-light performance. Lux camera has Wide Dynamic Range (WDR) and offers higher quality by oversampling (1080p ā> 720p). The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability.
Optimized for a 4:3 aspect ratio, it can also be configured for a 16:9 aspect ratio with a reduced vertical FOV. The camera boasts a large 94-degree vertical FOV, ideal for fast indoor and outdoor proximity flying. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.
Specifications
- Weight: 19.6g
- Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
- Propeller Size: 31mm
-
AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Bluejay ESC firmware pre-installed
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver compatible with ExpressLRS v3.0
- Built-in 5V 1A BEC
- Board size: 28.5x28.5mm with a 25.5x25.5 mounting hole size
- Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 from factory
- HDZero Lux Camera
- Sensor size: 1/2 inch
- Resolution: 720p60 4:3 and 16:9
- FOV: D:155Ā° H:126Ā° V:94Ā°(4:3)
- FOV: D:145Ā° H:126Ā° V:70Ā°(16:9)
- WDR
- MotorsĀ Ā Ā Ā Ā
- Kv:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Ī¦1mm
- Weight:1.5g
Included
- 1x Happymodel Mobula6 Freestyle BNF
- 1x Spare canopy
- 1x Spare propeller(set)
- 1x Screw driver
- 1x propeller disassemble tool
Original: $235.99
-65%$235.99
$82.60
