HDZero Eco Bundle

HDZero ECO Bundle is designed to bring digital FPV to more pilots by offering a low cost, light weight, and durable alternative to analog video. The digital video signal has stable color reproduction and 720p progressive scan video with the low latency HDZero is known for.

This budget-friendly Air Unit is a groundbreaking product—it’s the first VTX/camera combination that utilizes a HD composite video signal, eliminating the need for a delicate MIPI cable.

The ECO FPV System was meticulously designed for ultra-lightweight drones like Tiny Whoops, where every fraction of a gram counts. The camera’s huge 98deg vertical FOV is perfect for fast indoor proximity flying. The ECO VTX weighs approximately 4.5g, while the camera (including wires) comes in at about 1.6g. With the included 0.2g dipole antenna, the entire Eco Bundle weighs about mere 6.3g in total.

Suggested Eco Camera Setting:

• Sharpness: 15
• Saturation: 8
• R Surp: 8
• Brightness: 45

HDZero Eco Bundle Specifications:

Model:	HDZero Eco VTX
SKU：	HDZ3160
Frequency:	5.725-5.850GHz
Resolution:	1280*720@60fps
RF power：	25mW/200mW RF output
RF Connector:	U.FL
Video Connector:	Composite HD
Mounting：	25.5x25.2 M2 soft mounting
Size:	32.5x32.5mm (29x29mm inner)
Weight:	4.5grames/4mm Thickness
Power:	7W
Power input：	1S-3S



Eco Camera Specification:

Size:	14x14x14mm
Weight:	1.8gram
Sensor:	1/3 inch
FOV:	D:150° H:120° V:98°

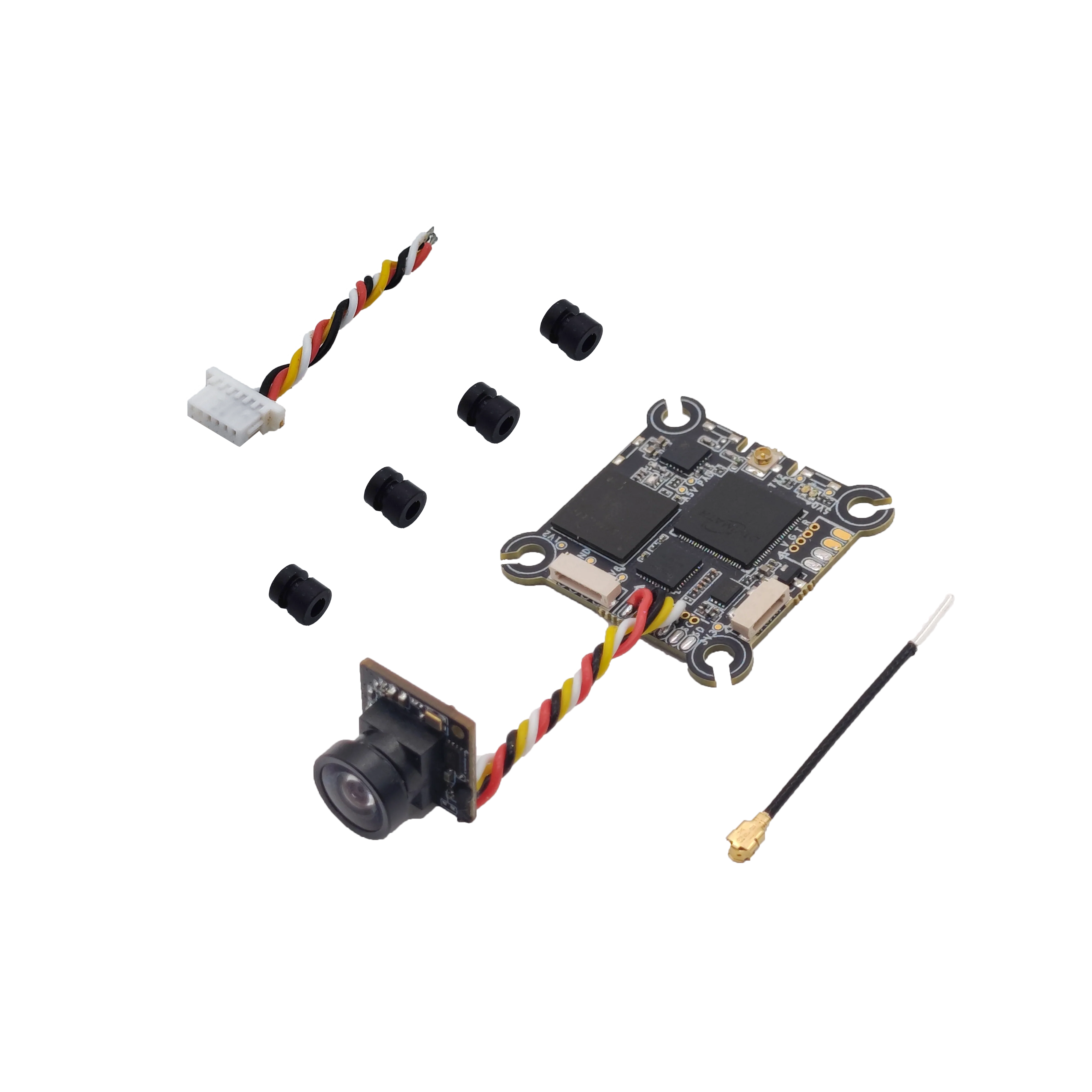

Includes

• HDZero Eco VTX * 1;
• HDZero Eco Camera * 1;
• Dipole Antenna * 1；
